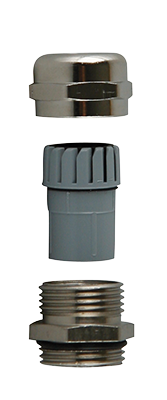

Cable gland SIB-TEC M63

Reference : C5263000

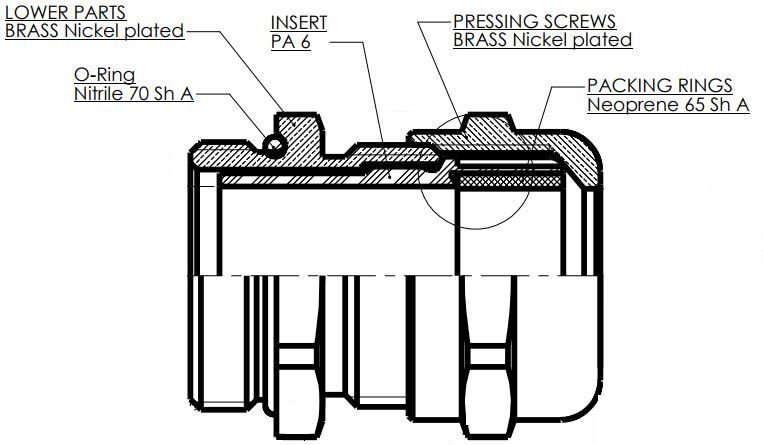

Material:

Cap nut/body of connector: nickel-plated brass
Gland (sealing): neoprene
Clamping shell: polyamide 6
Sealing-ring for External thread: nitrile

Colour(s)/Designs:

Threads: EN 60423 (metric) / Short metric thread
External thread: for armoured/*metric

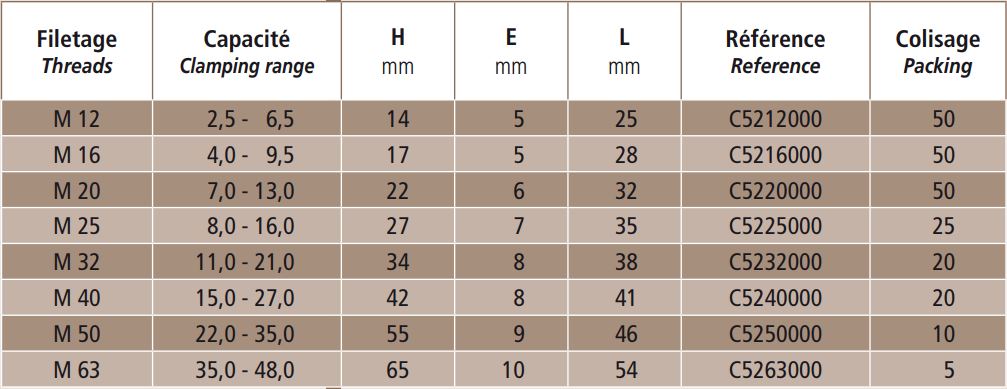

Reducing gland to order: see products attached on the right side

Features:

Cable gland with excellent strain relief, fully insulted, wide clamping range, O-ring on external thread

Application:

Machines and devices

Available on request:

Long thread
Stainless steel body and cap nut

Technical caracteristics

Couleur	Nickelé
Diamètre de câble maximum	48,0
Diamètre de câble minimum	35,0
Filetage	M 63 x1,5
Indice IP	IP 68
Matière	Nickel-plated brass / neoprene
Température maximum d'utilisation	+100°C
Température minimum d'utilisation	-40°C

Packaging

Certificats

RoHS EN 50262
