Cable Glands & accessories

Showing 1–10 of 160 results

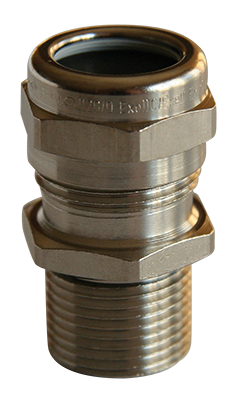

    Cable gland Ex d/e 1F – M 32

    Minimum outer sheath diameter

    17.0

    Maximum outer sheath diameter

    27.5

    Maximum cable diameter

    27,5

    Minimum cable diameter

    17,0

    Thread

    M 32

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 8

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111330

    Cable gland Ex d/e 1F – M 40

    Minimum outer sheath diameter

    17.0

    Maximum outer sheath diameter

    27.5

    Maximum cable diameter

    27,5

    Minimum cable diameter

    17,0

    Thread

    M 40

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 8

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111400

    Cable gland Ex d/e 1F – M 40

    Minimum outer sheath diameter

    22.0

    Maximum outer sheath diameter

    34.0

    Maximum cable diameter

    34,0

    Minimum cable diameter

    22,0

    Thread

    M 40

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 9

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111410

    Cable gland Ex d/e 1F – M 50

    Minimum outer sheath diameter

    22.0

    Maximum outer sheath diameter

    34.0

    Maximum cable diameter

    34,0

    Minimum cable diameter

    22,0

    Thread

    M 50

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 9

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111500

    Cable gland Ex d/e 1F – M 50

    Minimum outer sheath diameter

    28.0

    Maximum outer sheath diameter

    41.0

    Maximum cable diameter

    41,0

    Minimum cable diameter

    28,0

    Thread

    M 50

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 10

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111510

    Cable gland Ex d/e 1F – M100

    Minimum outer sheath diameter

    65.0

    Maximum outer sheath diameter

    83.0

    Maximum cable diameter

    83,0

    Minimum cable diameter

    65,0

    Thread

    M 100

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 15

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111980

    Cable gland Ex d/e 1F – M100

    Minimum outer sheath diameter

    74.0

    Maximum outer sheath diameter

    93.0

    Maximum cable diameter

    93,0

    Minimum cable diameter

    74,0

    Thread

    M 100

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 16

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111990

    Cable gland Ex d/e 1F – M12

    Minimum outer sheath diameter

    4.0

    Maximum outer sheath diameter

    8.0

    Maximum cable diameter

    8,0

    Minimum cable diameter

    4,0

    Thread

    M 12

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 4

    Maximum operating temperature

    +100°C

    Minimum operating temperature

    -40°C

    Référence :
    4111120

    Cable gland Ex d/e 1F – M12 (new model)

    Minimum outer sheath diameter

    5

    Maximum outer sheath diameter

    7.5

    Thread

    M 12 x1,5

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 4

    Maximum operating temperature

    +80°C

    Minimum operating temperature

    -60°C

    Référence :
    4704120

    Cable gland Ex d/e 1F – M12 (new model)

    Minimum outer sheath diameter

    5

    Maximum outer sheath diameter

    7.5

    Thread

    M 12 x1,5

    IP Index

    IP 68

    Material

    Laiton

    Size

    N° 4

    Maximum operating temperature

    +200°C

    Minimum operating temperature

    -20°C

    Référence :
    4704122
