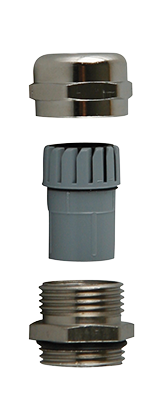

Cable gland SIB-TEC M32
Reference : C5232000

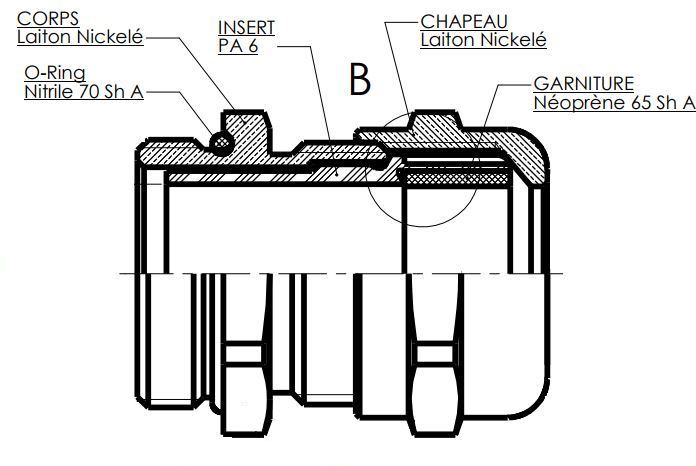

Material:
Cap nut/body of connector: nickel-plated brass
Gland (sealing): neoprene
Clamping shell: polyamide 6
Sealing-ring for External thread: nitrile
Colour(s)/Designs:
Threads: EN 60423 (metric) / Short metric thread
External thread: for armoured/*metric
Reducing gland to order: see products attached on the right side
Features:
Cable gland with excellent strain relief, fully insulted, wide clamping range, O-ring on external thread
Application:
Machines and devices
Available on request:
Long thread
Stainless steel body and cap nut
Technical caracteristics
| Couleur | Nickelé |
|---|---|
| Diamètre de câble maximum | 21,0 |
| Diamètre de câble minimum | 11,0 |
| Filetage | M 32 x1,5 |
| Indice IP | IP 68 |
| Matière | Nickel-plated brass / neoprene |
| Température maximum d'utilisation | +100°C |
| Température minimum d'utilisation | -40°C |
20
CertificatsRoHS EN 50262
