P07313 – Screwless connectors 3 wires
Reference : P07313
Screwless connectors 3 wires :

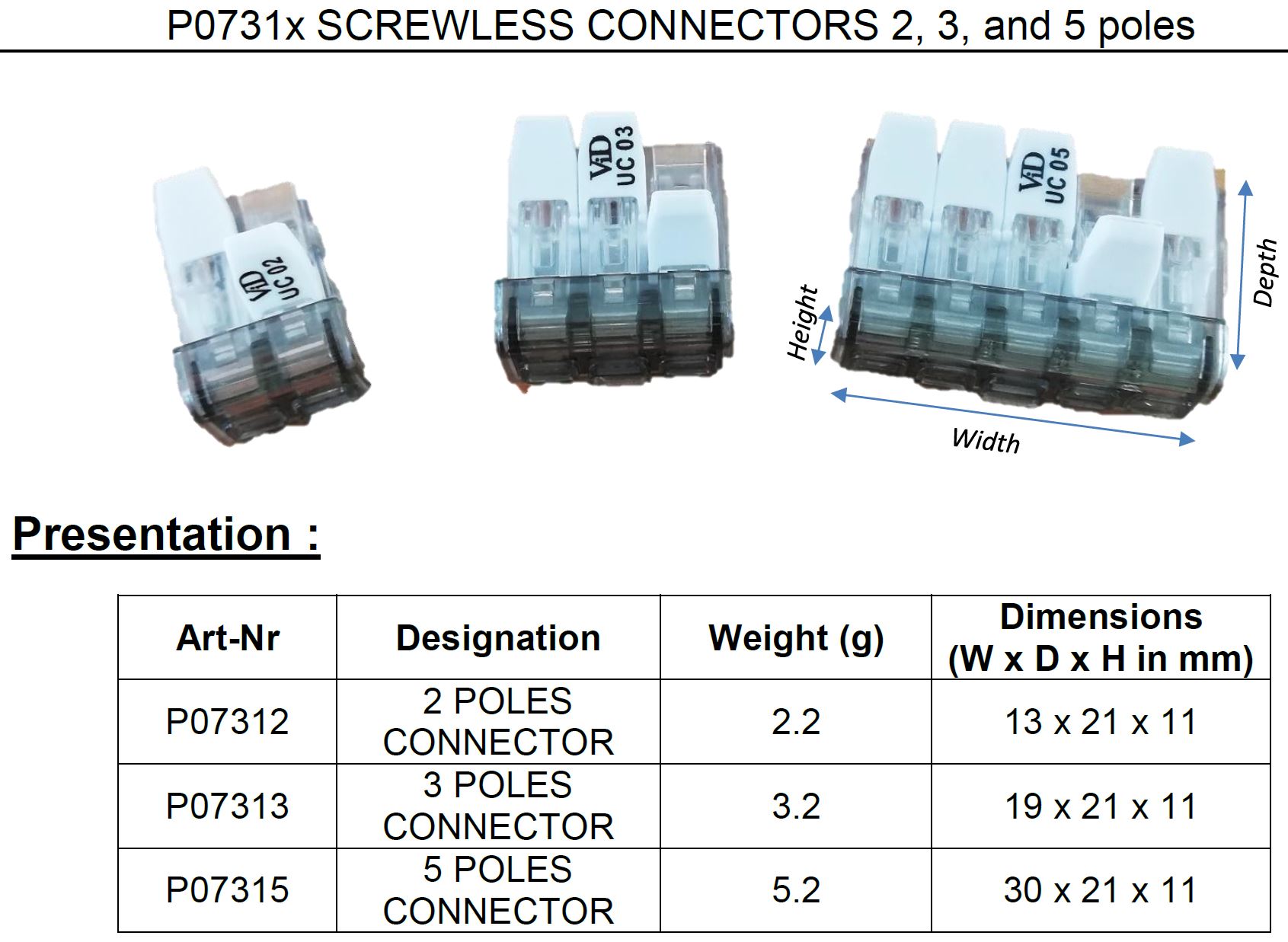

Exist in 2 others versions : 2 and 5 wires
Main technical characteristics :
– Complies with NF EN 60998-1 and NF EN 60998-2-2
– Material : terminal bloc : transparent polycarbonate ; levers : white polyamide
– Material classification UL94 V2
– Certifications : VDE / CE / ENEC
– Adapted to solid and flexible wires, from 0.2 to 4mm²
– Strip lenght : 11mm
– Possibility to insert solid wires without opening levers (Push-in type)
– Max rated voltage 450V (AC/DC), Max rated current 32A
– Max continuous service temperature : 85°C
– With test point on back side
– RoHS compatible
