110020513 SIB-TEC LF M32 cable gland

SIB-TEC lF cable gland + brass locknuts with TPE gasket

Cable gland composed of a nickel-plated lead-free brass bonnet, a TPR gasket, a polyamide insert a nitrile-plated lead-free brass body .

Model with reducer :

The inner diameter is smaller than the model wihout reducer.

The permissible cable diameter ranges are therefore lower (Ømax std > Ømax red; Ømini std > Ømini red).

Protection sign :

• IP 66 (totally protected againts dust and protected againts strong water jets)
• IP 68 ( completely dustproof. Protected againts immersion according to manufactures’s specifications)
• NEMA 4X (indoor/outdoor) falling residue, windblown dust Rain, sleet, water, directed through a pipe corrosion damege caused by external ice formation

 TEMPERATURE RANGE :

• Neoprene : -40 ºC / +100 ºC

TECHNICAL ADVANTAGES :

• SWB

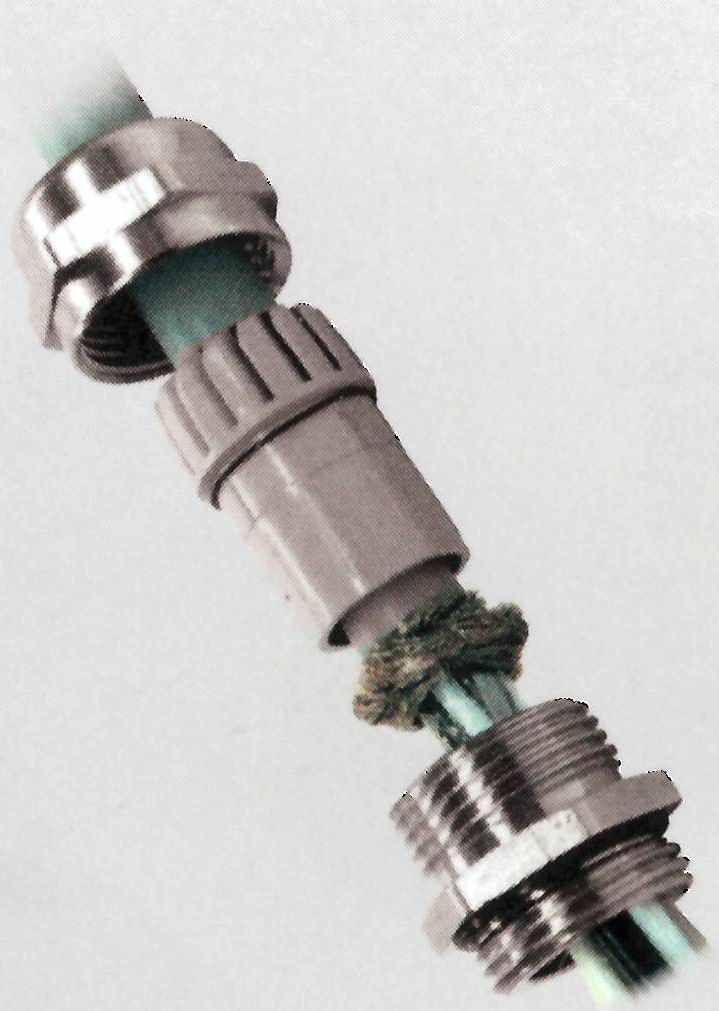

• For braided cable
• Thread & long
• Reducing trims available (RED*)
• Gasket included

MATERIAL :

• Lead-free nickel-plated brass CW 510L
• Trim : EPDM
• O-ring : Nitrile
• Insert : PA6

 THREAD :

• Metric, PG, NPT

 CERTIFICATION :

• IEC 62444

AVAILABLE ACCESSORIES :

• See accessories page

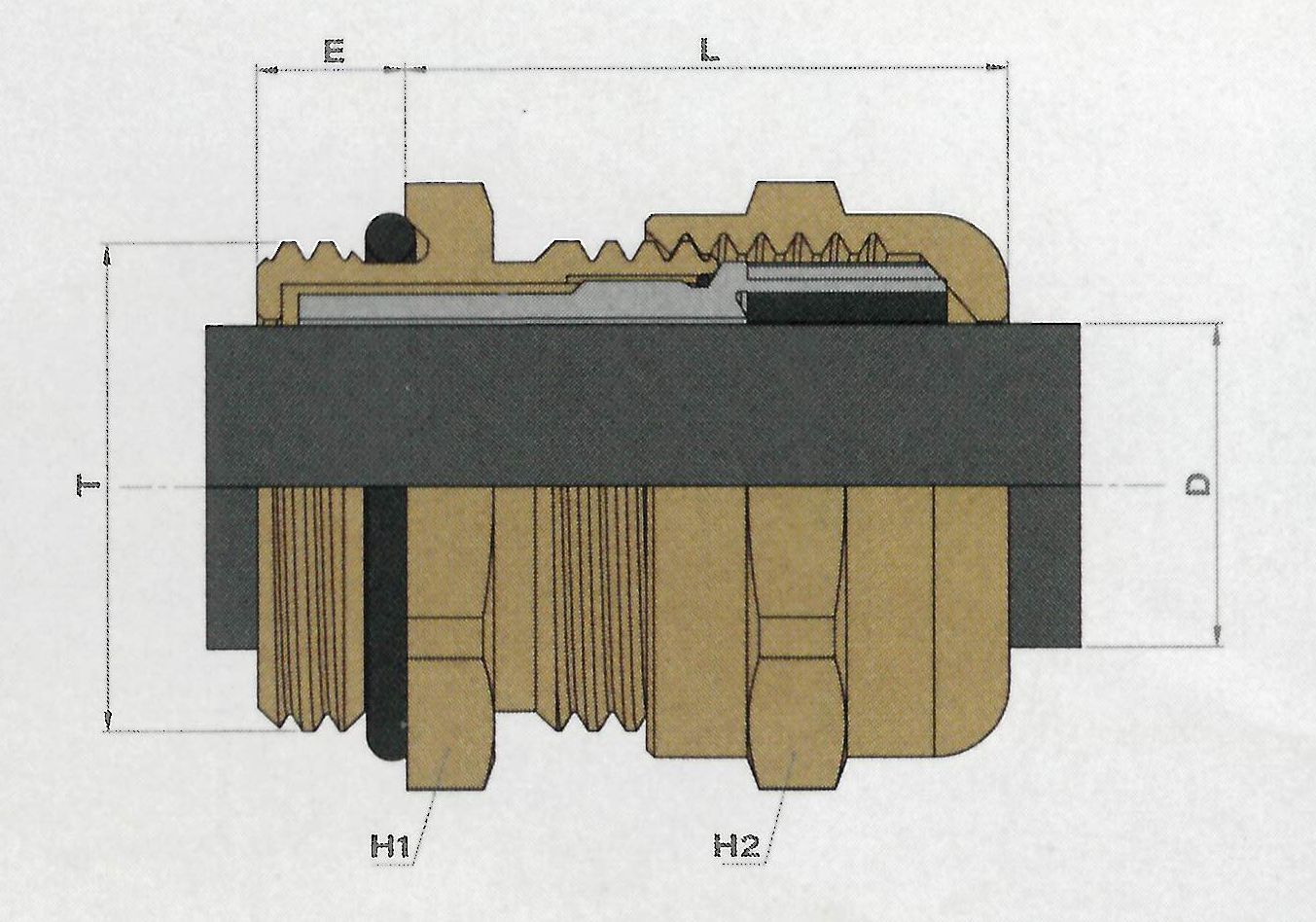

Technical caracteristics
